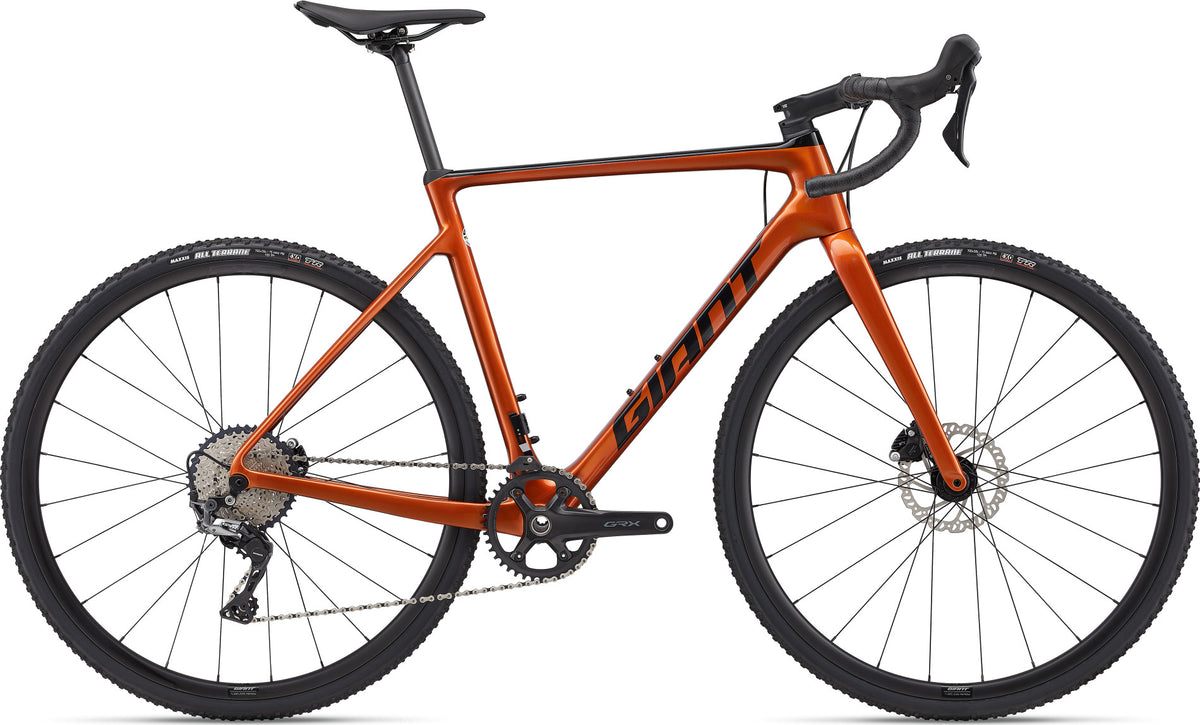

TCX ADVANCED PRO 2

SKU: 2202016106
$2.204.300
$3.290.000
$2.204.300
COLOR: AMBER GLOW
TALLA: ML
Protegida contra robos por 12 meses

Fast starts, tight corners, a blur of speed through dirt, sand and mud. Proven by elite cyclocross pros for years, the latest TCX Advanced Pro is built to win.

Key Performance Factors

Elite level efficiency

Advanced-grade composite frameset is 17.5 percent lighter than the previous generation while retaining its best-in-class torsional/pedaling stiffness.

Total control

Integrated disc brake technology with flat mounts and thru-axle hubs, combined with tubeless ready Giant WheelSystem, delivers added control in variable conditions and all types of weather.

Smooth ride quality

D-Fuse composite seatpost helps absorb bumps and vibrations, and you also have the option to switch to a standard 30.9mm round or dropper post depending on your riding style and terrain.

Highlights

The superlight composite frame is handcrafted with race-proven geometry and asymmetrical chainstays for optimal power transfer. The D-Fuse composite seatpost helps smooth out bumps and vibrations, and you also have the option to use a 30.9mm round standard or dropper seatpost. Other innovations include a lightweight composite WheelSystem and tubeless tires right out of the box; flat-mount disc brakes; and 12mm front and rear thru-axles for total control and fast cornering, sprinting and climbing in all conditions.

TCX Advanced Pro with interactive tooltips

Techs & Features

Advanced Composite Technology
D-Fuse Technology
OverDrive 2
Tubeless System
PowerCore
360-View
TCX Advanced Pro 2

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      158 cm5’2”  to 168 cm5’6”
  • S
      166 cm5’5”  to 174 cm5’9”
  • M
      172 cm5’8”  to 180 cm5’11”
  • ML
      178 cm5’10”  to 186 cm6’1”
  • L
      184 cm6’0”  to 192 cm6’4”
  • XL
      190 cm6’3”  to 198 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
    XS S M ML L XL
A Seat Tube Length (mm) (inch) 49019,3 50519,9 52520,7 54521,5 55521,9 56522,2
B Seat Tube Angle (degrees) 74,0° 73,5° 73,0° 73,0° 73,0° 73,0°
C Top Tube Length (mm) (inch) 51520,3 53020,9 54521,5 56022 57522,6 59023,2
D Head Tube Length (mm) (inch) 1184,6 1335,2 1485,8 1636,4 1787 1937,6
E Head Tube Angle (degrees) 70,7° 71,0° 71,5° 72,0° 72,5° 72,5°
F Fork Rake (mm) (inch) 502 502 502 502 502 502
G Trail (mm) (inch) 70,32,8 68,32,7 65,12,6 61,82,4 58,62,3 58,62,3
H Wheelbase (mm) (inch) 100639,6 101439,9 102040,2 103040,6 104040,9 105541,5
I Chain Stay Length (mm) (inch) 43016,9 43016,9 43016,9 43016,9 43016,9 43016,9
J Bottom Bracket Drop (mm) (inch) 602,4 602,4 602,4 602,4 602,4 602,4
K Stack (mm) (inch) 52520,7 52520,7 55621,9 57222,5 58923,2 60323,7
L Reach (mm) (inch) 36514,4 37014,6 37514,8 38515,2 39515,6 40616
M Stand Over Height (mm) (inch) 77530,5 78831 80731,8 82632,5 83232,8 84533,3
N Handlebar Width (mm) (inch) 40015,7 40015,7 42016,5 42016,5 44017,3 44017,3
O Stem Length (mm) (inch) 702,8 803,1 903,5 1003,9 1003,9 1104,3
P Crank Length (mm) (inch) 1706,7 1706,7 172,56,8 172,56,8 1756,9 1756,9
Q Wheel Size 700C 700C 700C 700C 700C 700C
Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colors
    Amber Glow
  • Frame
    Advanced-Grade Composite, 12mm thru-axle, disc
  • Fork
    Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc
  • Shock
    N/A
  • Handlebar
    Giant Contact SL XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
  • Grips
    Stratus Lite 3.0
  • Stem
    Giant Contact SL XS:70mm, S:80mm, M:90mm, M/L:100mm, L:100mm, XL:110mm
  • Seatpost
    Giant D-Fuse SL, composite, 16mm offset
  • Saddle
    Giant Approach
  • Pedals
    no pedal [GA, Pan-Eu] platform pedal [GU, GV, GJ] pedal w/toeclip and strap [All other GSC]
  • Shifters
    Shimano GRX RX-600, 1x11
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano GRX RX-812
  • Brakes
    Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]140mm
  • Brake Levers
    Shimano GRX RX-600 hydraulic
  • Cassette
    Shimano CS-M7000, 11-speed, 11x40
  • Chain
    KMC X11
  • Crankset
    Shimano GRX RX-600, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant P-X2 Disc wheelset
  • Hubs
    Giant P-X2 Disc wheelset
  • Spokes
    Giant P-X2 Disc wheelset
  • Tires
    Maxxis All-Terrene, 700x33c, tubeless
  • Extras
    Giant 1x chainguide, tubeless prepared, 45mm max tire size
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

All specifications listed are subject to change without notice.
