This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

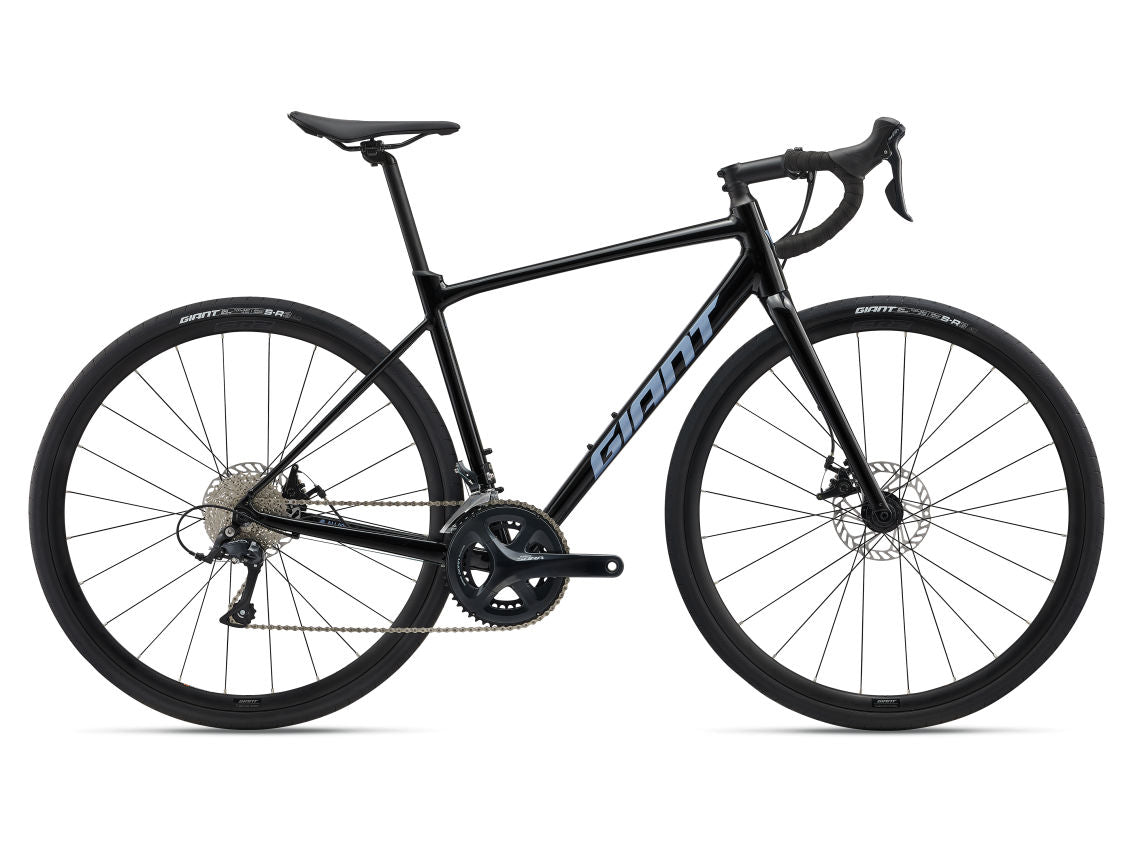

CONTEND AR 3
SKU: 1024012124
- $1.199.000
$1.199.000- $1.199.000
- Precio unitario
- por
12 cuotas sin interés de $99.917
Descripción
Techs & Features
ALUXX Aluminum Technology
Compact Road Design
Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
D-Fuse Technology
The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
-
- S
-
165 cm5’5”
175 cm5’9”
-
- M
-
171 cm5’7” 181 cm5’11”
-
- ML
-
177 cm5’10” 187 cm6’2”
-
- L
-
183 cm6’0” 193 cm6’4”
-
- XL
-
189 cm6’2” 199 cm6’6”
| S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 46518.3 | 50019.7 | 53521.1 | 55521.9 | 58523 |
| B | Seat Tube Angle (degrees) | 74.0° | 73.5° | 73.0° | 73.0° | 73.0° |
| C | Top Tube Length (mm) (inch) | 53521.1 | 55021.7 | 56522.2 | 58022.8 | 59523.4 |
| D | Head Tube Length (mm) (inch) | 1355.3 | 1505.9 | 1706.7 | 1907.5 | 2158.5 |
| E | Head Tube Angle (degrees) | 71.8° | 72.0° | 72.5° | 72.5° | 72.5° |
| F | Fork Rake (mm) (inch) | 532.1 | 532.1 | 532.1 | 532.1 | 532.1 |
| G | Trail (mm) (inch) | 61.32.4 | 59.62.3 | 56.42.2 | 56.42.2 | 56.42.2 |
| H | Wheelbase (mm) (inch) | 100339.5 | 101139.8 | 101540 | 103140.6 | 104641.2 |
| I | Chain Stay Length (mm) (inch) | 42216.6 | 42216.6 | 42216.6 | 42216.6 | 42216.6 |
| J | Bottom Bracket Drop (mm) (inch) | 803.1 | 803.1 | 803.1 | 803.1 | 803.1 |
| K | Stack (mm) (inch) | 55922 | 57422.6 | 59523.4 | 61424.2 | 63825.1 |
| L | Reach (mm) (inch) | 37514.8 | 38015 | 38315.1 | 39215.4 | 40015.7 |
| M | Stand Over Height (mm) (inch) | 75929.9 | 78330.8 | 81031.9 | 82932.6 | 85633.7 |
| N | Handlebar Width (mm) (inch) | 40015.7 | 42016.5 | 42016.5 | 44017.3 | 44017.3 |
| O | Stem Length (mm) (inch) | 903.5 | 1003.9 | 1003.9 | 1104.3 | 1104.3 |
| P | Crank Length (mm) (inch) | 1706.7 | 172.56.8 | 172.56.8 | 1756.9 | 1756.9 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C |
Descripción
xTechs & Features
ALUXX Aluminum Technology
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
Compact Road Design
Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
D-Fuse Technology
The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
-
- S
-
165 cm5’5” 175 cm5’9”
-
- M
-
171 cm5’7” 181 cm5’11”
-
- ML
-
177 cm5’10” 187 cm6’2”
-
- L
-
183 cm6’0” 193 cm6’4”
-
- XL
-
189 cm6’2” 199 cm6’6”
| S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 46518.3 | 50019.7 | 53521.1 | 55521.9 | 58523 |
| B | Seat Tube Angle (degrees) | 74.0° | 73.5° | 73.0° | 73.0° | 73.0° |
| C | Top Tube Length (mm) (inch) | 53521.1 | 55021.7 | 56522.2 | 58022.8 | 59523.4 |
| D | Head Tube Length (mm) (inch) | 1355.3 | 1505.9 | 1706.7 | 1907.5 | 2158.5 |
| E | Head Tube Angle (degrees) | 71.8° | 72.0° | 72.5° | 72.5° | 72.5° |
| F | Fork Rake (mm) (inch) | 532.1 | 532.1 | 532.1 | 532.1 | 532.1 |
| G | Trail (mm) (inch) | 61.32.4 | 59.62.3 | 56.42.2 | 56.42.2 | 56.42.2 |
| H | Wheelbase (mm) (inch) | 100339.5 | 101139.8 | 101540 | 103140.6 | 104641.2 |
| I | Chain Stay Length (mm) (inch) | 42216.6 | 42216.6 | 42216.6 | 42216.6 | 42216.6 |
| J | Bottom Bracket Drop (mm) (inch) | 803.1 | 803.1 | 803.1 | 803.1 | 803.1 |
| K | Stack (mm) (inch) | 55922 | 57422.6 | 59523.4 | 61424.2 | 63825.1 |
| L | Reach (mm) (inch) | 37514.8 | 38015 | 38315.1 | 39215.4 | 40015.7 |
| M | Stand Over Height (mm) (inch) | 75929.9 | 78330.8 | 81031.9 | 82932.6 | 85633.7 |
| N | Handlebar Width (mm) (inch) | 40015.7 | 42016.5 | 42016.5 | 44017.3 | 44017.3 |
| O | Stem Length (mm) (inch) | 903.5 | 1003.9 | 1003.9 | 1104.3 | 1104.3 |
| P | Crank Length (mm) (inch) | 1706.7 | 172.56.8 | 172.56.8 | 1756.9 | 1756.9 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C |
