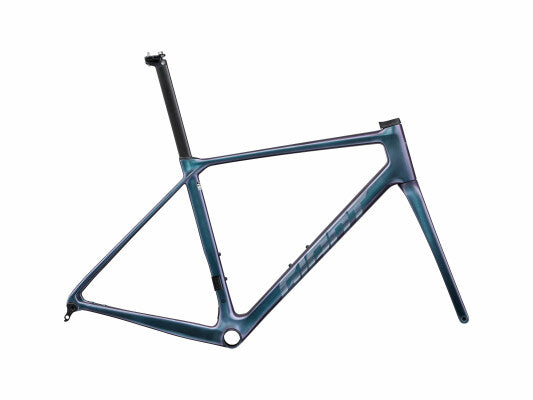

CUADRO TCR ADVANCED PRO FF

CUADRO TCR ADVANCED PRO FF

SKU: 1913006106

$1.990.000
$1.990.000
$1.990.000

12 cuotas sin interés de $165.833

TALLA: M
COLOR: BLUE DRAGONFLY
Descripción

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS
      157 cm5’2” to 169 cm5’7”
  • S
      165 cm5’5” to 175 cm5’9”
  • M
      171 cm5’7” to 181 cm5’11”
  • ML
      177 cm5’10” to 187 cm6’2”
  • L
      183 cm6’0” to 193 cm6’4”
  • XL
      189 cm6’2” to 199 cm6’6”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
    XS S M ML L XL
A Seat Tube Length (mm) (inch) 42516.7 44517.5 47018.5 50019.7 53020.9 56022
B Seat Tube Angle (degrees) 74.5° 74.0° 73.5° 73.0° 73.0° 72.5°
C Top Tube Length (mm) (inch) 52020.5 53521.1 55021.7 56522.2 58022.8 60023.6
D Head Tube Length (mm) (inch) 1204.7 1305.1 1455.7 1656.5 1857.3 2007.9
E Head Tube Angle (degrees) 71.0° 72.3° 73.0° 73.0° 73.0° 73.0°
F Fork Rake (mm) (inch) 451.8 451.8 451.8 451.8 451.8 451.8
G Trail (mm) (inch) 72.12.8 642.5 59.22.3 59.22.3 59.22.3 59.22.3
H Wheelbase (mm) (inch) 97638.4 97738.5 98038.6 99139 100639.6 102040.2
I Chain Stay Length (mm) (inch) 40515.9 40515.9 40515.9 40515.9 40515.9 40515.9
J Bottom Bracket Drop (mm) (inch) 722.8 702.8 702.8 672.6 672.6 672.6
K Stack (mm) (inch) 51720.4 52820.8 54521.5 56222.1 58122.9 59623.5
L Reach (mm) (inch) 37614.8 38315.1 38815.3 39315.5 40215.8 41216.2
M Stand Over Height (mm) (inch) 70627.8 72528.5 74729.4 77330.4 80031.5 81632.1
N Handlebar Width (mm) (inch) 40015.7 40015.7 42016.5 42016.5 44017.3 44017.3
O Stem Length (mm) (inch) 803.1 903.5 1003.9 1104.3 1104.3 1204.7
P Crank Length (mm) (inch) 1706.7 1706.7 172.56.8 172.56.8 1756.9 1756.9
Q Wheel Size 700C 700C 700C 700C 700C 700C
