El motor SyncDrive Core ofrece una potencia suave e instantánea para conquistar todo tipo de terreno y divertirse pedaleando

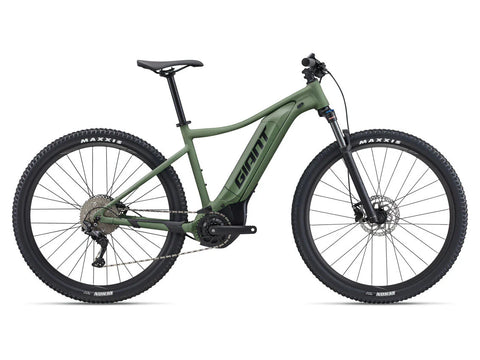

Un cuadro de aluminio ligero con geometría adecuada para senderos, 100 mm de recorrido de suspensión delantera y ruedas estables de 29 pulgadas te brindan control en terrenos fuera de la carretera.
El EnergyPak Side Release con capacidad de 500Wh o 400Wh (dependiendo del modelo) es fácil de cargar con nuestro cargador inteligente de 4A.
¿Qué distancia puedo esperar recorrer con una sola carga de batería?
La distancia que puedes recorrer con una sola carga de batería puede variar significativamente según las condiciones, como el peso combinado del ciclista y la carga, la resistencia al viento, la presión de los neumáticos y el perfil de la banda de rodadura, el terreno y los cambios de elevación, la superficie de la carretera o el sendero, la temperatura exterior, el mantenimiento de la bicicleta eléctrica y el estado de la batería.
La barra a continuación proporciona un rango aproximado. Las condiciones se clasifican como extremas, buenas e ideales. Las condiciones extremas suelen ocurrir al andar con una carga pesada, fuertes vientos en contra o subidas excesivas.
Hybrid Cycling Technology is a system that combines electric power with human power to produce a smart, natural and powerful E-bike riding experience. It’s an integrated group of technologies that includes our RideControl control unit, EnergyPak battery systems and SyncDrive motor.
For more information, check out the link below.
All SyncDrive motors have Smart Assist technology, which adjusts the support to match the rider’s needs. By using information from multiple sensors, both rider input and terrain feedback are used to determine the optimal amount of pedaling assistance. SyncDrive is the only e-bike system that utilizes both rider input and terrain feedback. It gives you a smooth, natural riding experience with ample power when you need it, while also conserving power when you don’t need as much.
SyncDrive Core is a compact and lightweight motor, making it ideal for E-bikes used for daily transportation or recreation. It has Smart Assist technology, featuring six sensors including a slope detection sensor and an accelerometer. These sensors allow the motor to produce power based on rider input and the terrain, so there is no need to select a certain assist mode. You can simply ride the same way you normally would, but
with more power. The result is an extremely comfortable and natural riding experience. SyncDrive Core delivers a very quiet performance that’s also powerful, with tunable support ratios up to 360 percent.
This two-in-one unit features buttons to control support modes plus an integrated color display. You can check range, battery level and support mode, along with standard cycling data such as speed and distance without having to another screen to the E-bike. It also has an ANT+ connection so you can connect a heart rate monitor and other fitness devices.
El tamaño debe ser utilizado solo como referencia. Por favor, consulta con un distribuidor autorizado local para determinar el tamaño correcto. Los tamaños disponibles pueden variar de un país a otro.
S | M | L | XL | ||
---|---|---|---|---|---|
A | Seat Tube Length (mm) (inch) | 40515.9 | 45517.9 | 50519.9 | 53521.1 |
B | Seat Tube Angle (degrees) | 73.0° | 73.0° | 73.0° | 73.0° |
C | Top Tube Length (mm) (inch) | 57522.6 | 60023.6 | 62524.6 | 65025.6 |
D | Head Tube Length (mm) (inch) | 1054.1 | 1154.5 | 1254.9 | 1405.5 |
E | Head Tube Angle (degrees) | 68.0° | 68.0° | 68.0° | 68.0° |
F | Fork Rake (mm) (inch) | 461.8 | 461.8 | 461.8 | 461.8 |
G | Trail (mm) (inch) | 100.73.9 | 100.73.9 | 100.73.9 | 100.73.9 |
H | Wheelbase (mm) (inch) | 114144.9 | 116745.9 | 119347 | 121948 |
I | Chain Stay Length (mm) (inch) | 47518.7 | 47518.7 | 47518.7 | 47518.7 |
J | Bottom Bracket Drop (mm) (inch) | 451.8 | 451.8 | 451.8 | 451.8 |
K | Stack (mm) (inch) | 62524.6 | 63425 | 64325.3 | 65725.9 |
L | Reach (mm) (inch) | 38415.1 | 40616 | 42816.9 | 44917.7 |
M | Stand Over Height (mm) (inch) | 72328.5 | 75329.6 | 78831 | 80831.8 |
O | Stem Length (mm) (inch) | 502 | 602.4 | 602.4 | 702.8 |
P | Crank Length (mm) (inch) | 1606.3 | 1656.5 | 1706.7 | 1706.7 |
Q | Wheel Size | 29" | 29" | 29" | 29" |
Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
El motor SyncDrive Core ofrece una potencia suave e instantánea para conquistar todo tipo de terreno y divertirse pedaleando
Un cuadro de aluminio ligero con geometría adecuada para senderos, 100 mm de recorrido de suspensión delantera y ruedas estables de 29 pulgadas te brindan control en terrenos fuera de la carretera.
El EnergyPak Side Release con capacidad de 500Wh o 400Wh (dependiendo del modelo) es fácil de cargar con nuestro cargador inteligente de 4A.
¿Qué distancia puedo esperar recorrer con una sola carga de batería?
La distancia que puedes recorrer con una sola carga de batería puede variar significativamente según las condiciones, como el peso combinado del ciclista y la carga, la resistencia al viento, la presión de los neumáticos y el perfil de la banda de rodadura, el terreno y los cambios de elevación, la superficie de la carretera o el sendero, la temperatura exterior, el mantenimiento de la bicicleta eléctrica y el estado de la batería.
La barra a continuación proporciona un rango aproximado. Las condiciones se clasifican como extremas, buenas e ideales. Las condiciones extremas suelen ocurrir al andar con una carga pesada, fuertes vientos en contra o subidas excesivas.
Hybrid Cycling Technology is a system that combines electric power with human power to produce a smart, natural and powerful E-bike riding experience. It’s an integrated group of technologies that includes our RideControl control unit, EnergyPak battery systems and SyncDrive motor.
For more information, check out the link below.
All SyncDrive motors have Smart Assist technology, which adjusts the support to match the rider’s needs. By using information from multiple sensors, both rider input and terrain feedback are used to determine the optimal amount of pedaling assistance. SyncDrive is the only e-bike system that utilizes both rider input and terrain feedback. It gives you a smooth, natural riding experience with ample power when you need it, while also conserving power when you don’t need as much.
SyncDrive Core is a compact and lightweight motor, making it ideal for E-bikes used for daily transportation or recreation. It has Smart Assist technology, featuring six sensors including a slope detection sensor and an accelerometer. These sensors allow the motor to produce power based on rider input and the terrain, so there is no need to select a certain assist mode. You can simply ride the same way you normally would, but
with more power. The result is an extremely comfortable and natural riding experience. SyncDrive Core delivers a very quiet performance that’s also powerful, with tunable support ratios up to 360 percent.
This two-in-one unit features buttons to control support modes plus an integrated color display. You can check range, battery level and support mode, along with standard cycling data such as speed and distance without having to another screen to the E-bike. It also has an ANT+ connection so you can connect a heart rate monitor and other fitness devices.
El tamaño debe ser utilizado solo como referencia. Por favor, consulta con un distribuidor autorizado local para determinar el tamaño correcto. Los tamaños disponibles pueden variar de un país a otro.
S | M | L | XL | ||
---|---|---|---|---|---|
A | Seat Tube Length (mm) (inch) | 40515.9 | 45517.9 | 50519.9 | 53521.1 |
B | Seat Tube Angle (degrees) | 73.0° | 73.0° | 73.0° | 73.0° |
C | Top Tube Length (mm) (inch) | 57522.6 | 60023.6 | 62524.6 | 65025.6 |
D | Head Tube Length (mm) (inch) | 1054.1 | 1154.5 | 1254.9 | 1405.5 |
E | Head Tube Angle (degrees) | 68.0° | 68.0° | 68.0° | 68.0° |
F | Fork Rake (mm) (inch) | 461.8 | 461.8 | 461.8 | 461.8 |
G | Trail (mm) (inch) | 100.73.9 | 100.73.9 | 100.73.9 | 100.73.9 |
H | Wheelbase (mm) (inch) | 114144.9 | 116745.9 | 119347 | 121948 |
I | Chain Stay Length (mm) (inch) | 47518.7 | 47518.7 | 47518.7 | 47518.7 |
J | Bottom Bracket Drop (mm) (inch) | 451.8 | 451.8 | 451.8 | 451.8 |
K | Stack (mm) (inch) | 62524.6 | 63425 | 64325.3 | 65725.9 |
L | Reach (mm) (inch) | 38415.1 | 40616 | 42816.9 | 44917.7 |
M | Stand Over Height (mm) (inch) | 72328.5 | 75329.6 | 78831 | 80831.8 |
O | Stem Length (mm) (inch) | 502 | 602.4 | 602.4 | 702.8 |
P | Crank Length (mm) (inch) | 1606.3 | 1656.5 | 1706.7 | 1706.7 |
Q | Wheel Size | 29" | 29" | 29" | 29" |
Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products with your local retailer at the time of sale if purchasing in-store. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs.
