A state-of-the-art high-pressure molding process is used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar components made from aluminum. This technology is used in critical performance parts such as Maestro Suspension rocker links.
TRANCE X ADVANCED ELITE E+0 / PREVENTA MAYO
Compra hoy y recibe a principios de Septiembre
SKU:
5280300104
- $13.788.000
- $13.788.000
- Precio unitario
- por
Protegida contra robos por 12 meses
Descripción
Accelerate up climbs, float through rock gardens, and experience more power, agility and control with this lightweight, full-suspension E-MTB. The ultra-slim battery minimizes weight so you can ride technical trails the way you always dreamed of.
Key Performance Factors
Lighter weight
EnergyPak 400 battery system is ultra slim, delivering all the power you need, but in a smaller package that’s cleanly integrated into the lightweight composite frameset.

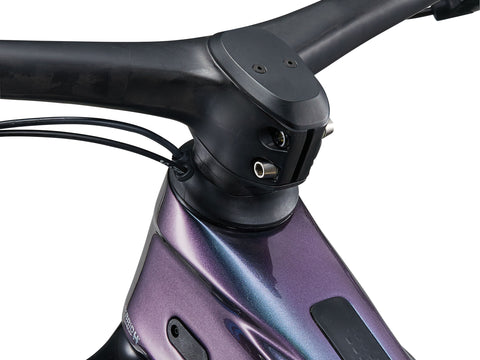

Advanced cockpit control
RideControl Ergo 3 remote attaches to the composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customize your controls for a clean, uncluttered cockpit.
More power
New SyncDrive Pro Magnesium motor features a magnesium casing that reduces weight by 50g. It weighs just 2.5kg and delivers 85Nm of torque while retaining the instant engagement that characterizes SyncDrive Pro motors. It’s also engineered for a reduced noise level and quiet performance.
Range
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
EnergyPak 400 / SyncDrive Pro2 Mg
Techs & Features
Advanced Forged Composite Technology
Advanced Composite Technology
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
RideControl Ergo 3
This updated control system features clean buttons that are integrated with the handlebar grips. You can install the three-button control on the left or right side, making it easy to switch power modes. You also have the option of adding a second control on the other side. Using the RideControl App, you can configure it to your own personal preferences.

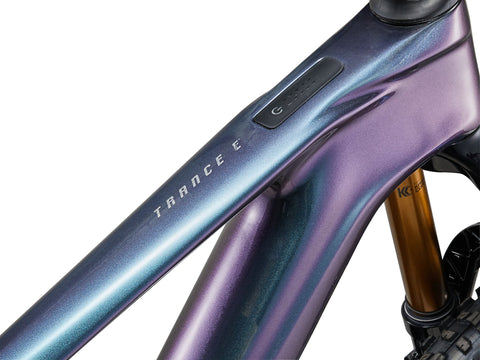

RideControl Go
Available on premium Giant E-Bikes, RideControl Go features a multipurpose button integrated into the top tube. Colored LEDs allow you to switch power modes from the top tube and keep a clean handlebar setup. The lights also display battery level and support mode.
Energypak
Giant’s latest EnergyPak battery systems feature streamlined designs that are integrated with the E-bike for a sleek and modern profile. Giant E-bikes offer several different EnergyPak options including the EnergyPak Smart and EnergyPak. Each one is designed to optimize the E-bike experience for a specific style of riding.

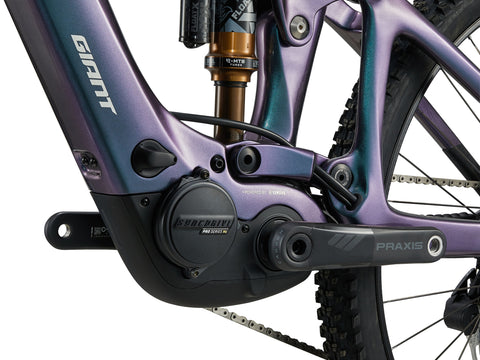

SyncDrive Pro MG
This updated motor features a magnesium casing that reduces weight to just 2.5kg while still delivering 85Nm of torque and retaining the instant engagement that characterizes SyncDrive Pro motors. It’s also engineered for a reduced noise level and quiet performance. The motor shape and dimensions allow for a narrow Q factor to ensure a natural pedaling position with minimal strain on the knees.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
- S
-
163 cm5’4”
174 cm5’9”
- M
-
171 cm5’7” 182 cm6’0”
- L
-
179 cm5’10” 190 cm6’3”
- XL
-
187 cm6’2” 199 cm6’6”
| S | M | L | XL | ||
|---|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
| A | Seat Tube Length (mm) (inch) | 40015.7 | 42516.7 | 45017.7 | 47518.7 |
| A1 | Seat Post Insertion Depth (mm) (inch) | 2208.7 | 2459.6 | 27010.6 | 29511.6 |
| B | Seat Tube Angle (degrees) | 77.2° | 78.0° | 76.0° | 76.7° | 76.0° | 76.7° | 76.0° | 76.7° |
| C | Top Tube Length (mm) (inch) | 57722.7 | 57522.6 | 60723.9 | 60523.8 | 63625 | 63425 | 66526.2 | 66326.1 |
| D | Head Tube Length (mm) (inch) | 953.7 | 1003.9 | 1154.5 | 1305.1 |
| E | Head Tube Angle (degrees) | 65.7° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° |
| F | Fork Rake (mm) (inch) | 441.7 | 441.7 | 441.7 | 441.7 |
| G | Trail (mm) (inch) | 113.14.4 | 1084.3 | 113.14.4 | 1084.3 | 113.14.4 | 1084.3 | 113.14.4 | 1084.3 |
| H | Wheelbase (mm) (inch) | 119447 | 119547 | 121547.8 | 121247.7 | 124449 | 124449 | 127550.2 | 127550.2 |
| I | Chain Stay Length (mm) (inch) | 44717.6 | 44717.6 | 44717.6 | 44717.6 | 44717.6 | 44717.6 | 44717.6 | 44717.6 |
| J | Bottom Bracket Drop (mm) (inch) | 100.4 | 100.4 | 100.4 | 100.4 |
| K | Stack (mm) (inch) | 60723.9 | 60123.7 | 61124.1 | 60523.8 | 62524.6 | 61924.4 | 63925.2 | 63324.9 |
| L | Reach (mm) (inch) | 43917.3 | 44717.6 | 45718 | 46218.2 | 48018.9 | 48719.2 | 50519.9 | 51320.2 |
| M | Stand Over Height (mm) (inch) | 72628.6 | 73528.9 | 73328.9 | 74229.2 | 73228.8 | 74129.2 | 74129.2 | 75029.5 |
| N | Handlebar Width (mm) (inch) | 78030.7 | 78030.7 | 78030.7 | 78030.7 |
| O | Stem Length (mm) (inch) | 401.6 | 401.6 | 502 | 502 |
| P | Crank Length (mm) (inch) | 1606.3 | 1656.5 | 1656.5 | 1706.7 |
| Q | Wheel Size | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] |
Descripción
xAccelerate up climbs, float through rock gardens, and experience more power, agility and control with this lightweight, full-suspension E-MTB. The ultra-slim battery minimizes weight so you can ride technical trails the way you always dreamed of.
Key Performance Factors
Lighter weight
EnergyPak 400 battery system is ultra slim, delivering all the power you need, but in a smaller package that’s cleanly integrated into the lightweight composite frameset.
Advanced cockpit control
RideControl Ergo 3 remote attaches to the composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customize your controls for a clean, uncluttered cockpit.
More power
New SyncDrive Pro Magnesium motor features a magnesium casing that reduces weight by 50g. It weighs just 2.5kg and delivers 85Nm of torque while retaining the instant engagement that characterizes SyncDrive Pro motors. It’s also engineered for a reduced noise level and quiet performance.
Range
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
EnergyPak 400 / SyncDrive Pro2 Mg
Techs & Features
Advanced Forged Composite Technology
A state-of-the-art high-pressure molding process is used to produce complex-shaped carbon fiber components that are lighter, stiffer and stronger than similar components made from aluminum. This technology is used in critical performance parts such as Maestro Suspension rocker links.
Advanced Composite Technology
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
RideControl Ergo 3
This updated control system features clean buttons that are integrated with the handlebar grips. You can install the three-button control on the left or right side, making it easy to switch power modes. You also have the option of adding a second control on the other side. Using the RideControl App, you can configure it to your own personal preferences.
RideControl Go
Available on premium Giant E-Bikes, RideControl Go features a multipurpose button integrated into the top tube. Colored LEDs allow you to switch power modes from the top tube and keep a clean handlebar setup. The lights also display battery level and support mode.
Energypak
Giant’s latest EnergyPak battery systems feature streamlined designs that are integrated with the E-bike for a sleek and modern profile. Giant E-bikes offer several different EnergyPak options including the EnergyPak Smart and EnergyPak. Each one is designed to optimize the E-bike experience for a specific style of riding.
SyncDrive Pro MG
This updated motor features a magnesium casing that reduces weight to just 2.5kg while still delivering 85Nm of torque and retaining the instant engagement that characterizes SyncDrive Pro motors. It’s also engineered for a reduced noise level and quiet performance. The motor shape and dimensions allow for a narrow Q factor to ensure a natural pedaling position with minimal strain on the knees.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
- S
-
163 cm5’4” 174 cm5’9”
- M
-
171 cm5’7” 182 cm6’0”
- L
-
179 cm5’10” 190 cm6’3”
- XL
-
187 cm6’2” 199 cm6’6”
| S | M | L | XL | ||
|---|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
| A | Seat Tube Length (mm) (inch) | 40015.7 | 42516.7 | 45017.7 | 47518.7 |
| A1 | Seat Post Insertion Depth (mm) (inch) | 2208.7 | 2459.6 | 27010.6 | 29511.6 |
| B | Seat Tube Angle (degrees) | 77.2° | 78.0° | 76.0° | 76.7° | 76.0° | 76.7° | 76.0° | 76.7° |
| C | Top Tube Length (mm) (inch) | 57722.7 | 57522.6 | 60723.9 | 60523.8 | 63625 | 63425 | 66526.2 | 66326.1 |
| D | Head Tube Length (mm) (inch) | 953.7 | 1003.9 | 1154.5 | 1305.1 |
| E | Head Tube Angle (degrees) | 65.7° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° |
| F | Fork Rake (mm) (inch) | 441.7 | 441.7 | 441.7 | 441.7 |
| G | Trail (mm) (inch) | 113.14.4 | 1084.3 | 113.14.4 | 1084.3 | 113.14.4 | 1084.3 | 113.14.4 | 1084.3 |
| H | Wheelbase (mm) (inch) | 119447 | 119547 | 121547.8 | 121247.7 | 124449 | 124449 | 127550.2 | 127550.2 |
| I | Chain Stay Length (mm) (inch) | 44717.6 | 44717.6 | 44717.6 | 44717.6 | 44717.6 | 44717.6 | 44717.6 | 44717.6 |
| J | Bottom Bracket Drop (mm) (inch) | 100.4 | 100.4 | 100.4 | 100.4 |
| K | Stack (mm) (inch) | 60723.9 | 60123.7 | 61124.1 | 60523.8 | 62524.6 | 61924.4 | 63925.2 | 63324.9 |
| L | Reach (mm) (inch) | 43917.3 | 44717.6 | 45718 | 46218.2 | 48018.9 | 48719.2 | 50519.9 | 51320.2 |
| M | Stand Over Height (mm) (inch) | 72628.6 | 73528.9 | 73328.9 | 74229.2 | 73228.8 | 74129.2 | 74129.2 | 75029.5 |
| N | Handlebar Width (mm) (inch) | 78030.7 | 78030.7 | 78030.7 | 78030.7 |
| O | Stem Length (mm) (inch) | 401.6 | 401.6 | 502 | 502 |
| P | Crank Length (mm) (inch) | 1606.3 | 1656.5 | 1656.5 | 1706.7 |
| Q | Wheel Size | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] | 29" [F] 27.5" [R] |
